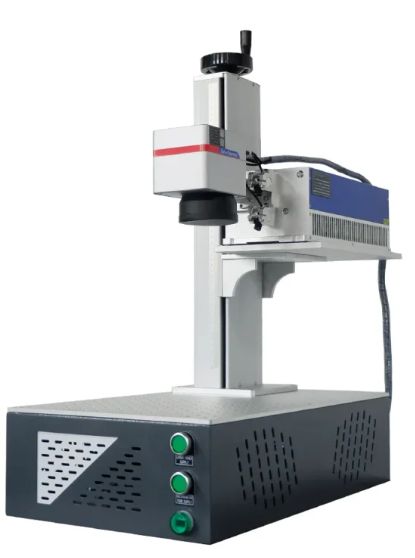

5W UV Laser marker
C$11 000.00
In stock
Product Details
This HantenCNC air-cooled portable all-in-one UV laser marking machine are affordable and perfect for marking a wide range of materials such as plastic , glass and resins, etc. It is lightweight, with a net weight of 40kg, making it easy to move. It has a power of 3W and 5W to choose from.
Our UV laser marking machine has a compact design that saves space, making it ideal for work environments with limited room. Gainlaser lasers deliver high-precision beams while reducing energy consumption, perfect for precision marking applications.
This UV laser marking machine is perfect for marking various materials, including glass, ceramics, plastics, etc. And it is very suitable for engraving DIY customized patterns on leaves or marking other anniversary gift!
Technical Specifications
| Model | HTU-3 | HTU-5 |
| Net weight | 40kg | 40kg |
| Machine size | 800*350*650mm | 800*350*650mm |
| Cooling | Air cooling | Air cooling |
| Laser Parameters | ||
| Laser source | Gainlaser | Gainlaser |
| Power | 3W | 5W |
| Marking area | 100mm-200mm | 100mm-200mm |
| Laser wavelength | 355nm | 355nm |
| Average power | >3W@30kHz | >5W@40kHz |
| Beam Quality | M²＜1.2 | M²＜1.2 |
| Frequency range | 1-150kHz | 1-150kHz |
| Spot diameter | 0.7±0.1mm | 0.8±0.1mm |
| Beam circularity | ＞90% | ＞90% |
| Marking speed | ≤7000mm/s | ≤7000mm/s |
| Electricity demand | 220V(110V)/50Hz(60Hz) | 220V(110V)/50Hz(60Hz) |
