20w 30w 50w Fiber Laser Marking Machine For Metal Engraving

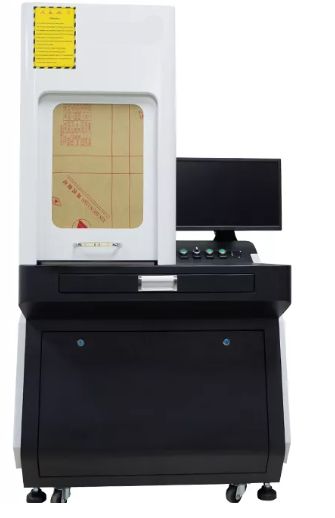

The semi-sealed fiber laser marking machine works quickly, keeps out dust, and lasts longer.
Desk design with space-saving features, computer placement, automatic column height adjustment, and convenient positioning and marking.
Fiber laser marking machines are compact, lightweight, and offer flexible movement without producing chemical pollution or harmful substances during the marking process. They are widely used in applications such as automotive manufacturing, electronic products, medical devices, aerospace, etc.
1. High precision: Our laser marking machine utilizes advanced positioning technology to achieve accurate marking and ensure the consistency marking pattern.
2. High speed: Our laser marking machine adopts advanced laser technology and a high-speed scanning system, which can achieve fast and efficient marking, ensuring production progress and efficiency.
3. No consumables: Non-contact marking, no consumables, energy-saving and environmentally friendly.
4. Low cost: The laser marking machine features an energy-saving design and efficient laser technology, offering a reasonably price and highly cost-effectiveness.
Technical Specifications
| Category | Parameter | HTF‑20 | HTF‑30 | HTF‑50 |
|---|---|---|---|---|
| Machine Parameters | Model | HTF‑20 | HTF‑30 | HTF‑50 |
| Power | 20W | 30W | 50W | |
| Supply Voltage | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | |
| Net Weight | About 100kg | About 100kg | About 100kg | |
| Machine Size | 940×970×1600mm | 940×970×1600mm | 940×970×1600mm | |
| Optical Parameters | Laser Source | JPT / Raycus / MAX | JPT / Raycus / MAX | JPT / Raycus / MAX |
| Beam Quality | <1.5m² | <1.5m² | <1.8m² | |
| Cable Length | 2m | 2m | 3m | |
| Maximum Pulse Energy | 0.8mJ | 0.8mJ | 1.25mJ | |
| Frequency Range | 1–600kHz | 1–600kHz | 1–600kHz | |
| Marking Area | 100×100mm – 300×300mm | Same | Same | |
| Cooling System | Air‑cooled | Air‑cooled | Air‑cooled | |
| Power Consumption | <110W | <150W | <220W | |
| Output Beam Diameter | 7±0.5mm | 7±0.5mm | 7±0.5mm | |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | |
| Marking Speed | 0–7000mm/s | 0–7000mm/s | 0–7000mm/s | |
| Marking Linewidth | 0.01mm–0.1mm | 0.01mm–0.1mm | 0.01mm–0.1mm |
