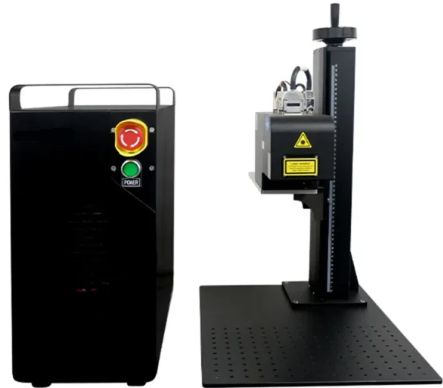

50W 80W 100W Mini 3D Fiber Laser Marking Machines
C$21 000.00
In stock
Product Details
Dragonfire’s 3D fiber laser marking machines adopt the high-quality FEELTEK F10 galvanometer, which can be used for distortion-free marking on 3D curved surfaces, steps, cones, slopes, and other objects.
Our 3D mini fiber laser marking machines can focus the laser beam on a tiny point to realize fine engraving, marking, and cutting on the surface of the workpiece.
Dragonfire’s 3D fiber laser marking machine is a mini-split laser marker with advanced 3D marking capabilities. Our mini 3D fiber laser marking machine is designed for high-precision 3D marking, engraving, and carving on various material surfaces, including brass, carbon steel, mould steel, stainless steel, SIC, and more.
The galvo head of our 3D fiber laser marking machine adopts the 3D FEELTEK F10; it applies dynamic focus control technology, breaks the limitation of traditional marking, and can do no distortion marking on 3D surface steps, cone surfaces, slope surfaces, large-scale surfaces, and other objects. The dynamic axis works together with the XY axis, allowing the scan head to achieve intricate relief in deep engraving and texture etching easily.
Dragonfire’s self-developed LenMark software is specifically for dynamic focus control. LenMark 3DS is a user-friendly dynamic focus system software. With its intuitive 3D interface, users can easily import, edit, and map 3D images, ensuring accurate processing control over 3D surfaces.
Our 3D fiber laser marking machine cabinets are designed with metal sheets that can be put on the table. For the 3D fiber laser marking machines, we recommend choosing a power of over 50W; which ensures stronger marking ability, wider application, enhanced efficiency, deeper marking depth, and long-term reliability to meet your marking requirements.
Technical Specifications
| Category | Parameter | HTF50 | HTF60 | HTF80 | HTF100 |
|---|---|---|---|---|---|
| Operating Environment | Supply voltage | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz |
| Overall Power Consumption | 550 W | 760 W | 640 W | 700 W | |
| Optical Parameters | Output Power | 50 W | 60 W | 80 W | 100 W |
| Galvo Head | 3D FEELTEK F10 | 3D FEELTEK F10 | 3D FEELTEK F10 | 3D FEELTEK F10 | |
| Marking Area | 200 mm × 200 mm (Max) | 200 mm × 200 mm (Max) | 200 mm × 200 mm (Max) | 200 mm × 200 mm (Max) | |
| Marking Linewidth | 0.01 mm – 0.1 mm | 0.01 mm – 0.1 mm | 0.01 mm – 0.1 mm | 0.01 mm – 0.1 mm | |
| Minimum Character Size | 0.15 mm | 0.15 mm | 0.15 mm | 0.15 mm | |
| Power Adjustment Range (%) | 0–100 (Gradient Adjustable) | 0–100 (Gradient Adjustable) | 0–100 (Gradient Adjustable) | 0–100 (Gradient Adjustable) | |
| Marking Speed | 0–7000 mm/s | 0–7000 mm/s | 0–7000 mm/s | 0–7000 mm/s | |
| Fiber Cable Length | 3 m | 3 m | 3 m | 3 m | |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm | |
| System Software | LenMark 3DS | LenMark 3DS | LenMark 3DS | LenMark 3DS | |
| Cooling Method | Air‑cooled | Air‑cooled | Air‑cooled | Air‑cooled | |
| Machine Parameters | Machine Dimensions | 700 mm × 500 mm × 550 mm | 700 mm × 500 mm × 550 mm | 700 mm × 500 mm × 550 mm | 700 mm × 500 mm × 550 mm |
| Machine Weight | ~55 kg | ~55 kg | ~55 kg | ~55 kg |
