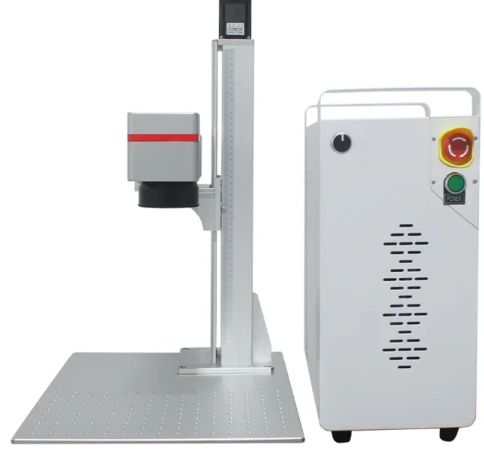

50W 2.5D laser fibre marker
C$13 000.00
In stock
Product Details
30W 50W Laser Machine for Marking | 2.5D Laser Marking Machine
HANTENNCNC’s 2.5D laser machine for marking can accurately mark and carve workpieces of various materials and shapes, including flat and curved surfaces. Its marking effect is clearer and more precise than traditional 2D marking machines.
The laser marking machine is equipped with an electric lifting column, so you can accurately adjust the height of the marking head, making it easy to handle marking at different heights.
The 2.5D laser machine for marking can achieve marking at different depths on the material surface by adjusting the focus of the laser. Split design, lightweight, compact, movable, and convenient to use.
The 2.5D fiber laser marking machine is suitable for industries such as electronic components, automotive manufacturing, medical equipment, jewelry and watches, molds, packaging, etc.
Technical Specifications
| Category | Parameter | HTF30 | HTF50 |
|---|---|---|---|
| Machine Parameters | Model | HTF30 | HTF50 |
| Operating Voltage | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | |
| Machine Dimensions | 700×680×780mm | 700×680×780mm | |
| Machine Weight | About 50kg | About 50kg | |
| Cooling Method | Air‑cooled | Air‑cooled | |
| Laser Parameters | Power | 30W | 50W |
| Laser Source | Raycus / JPT | Raycus / JPT | |
| Galvo Head | RC 1001 | RC 1001 | |
| Marking Speed | 0–1000mm/s | 0–1000mm/s | |
| Center Wavelength | 1060–1085nm | 1060–1085nm | |
| Spot Diameter | 6–8mm | 6–8mm | |
| Beam Quality | <1.6M² | <1.6M² | |
| Repetitive Frequency | 40–60kHz | 50–100kHz | |
| Power Regulation Range | 10–100% | 10–100% | |
| Fiber Optic Cable Length | 3m | 3m | |
| Working Voltage | 24±1VDC | 24±1VDC | |
| Power Dissipation | <200W | <340W | |
| Working Temperature | 0–40°C | 0–40°C | |
| Working Humidity | ≤80% | ≤80% |
50W 2.5D laser fibre marker
