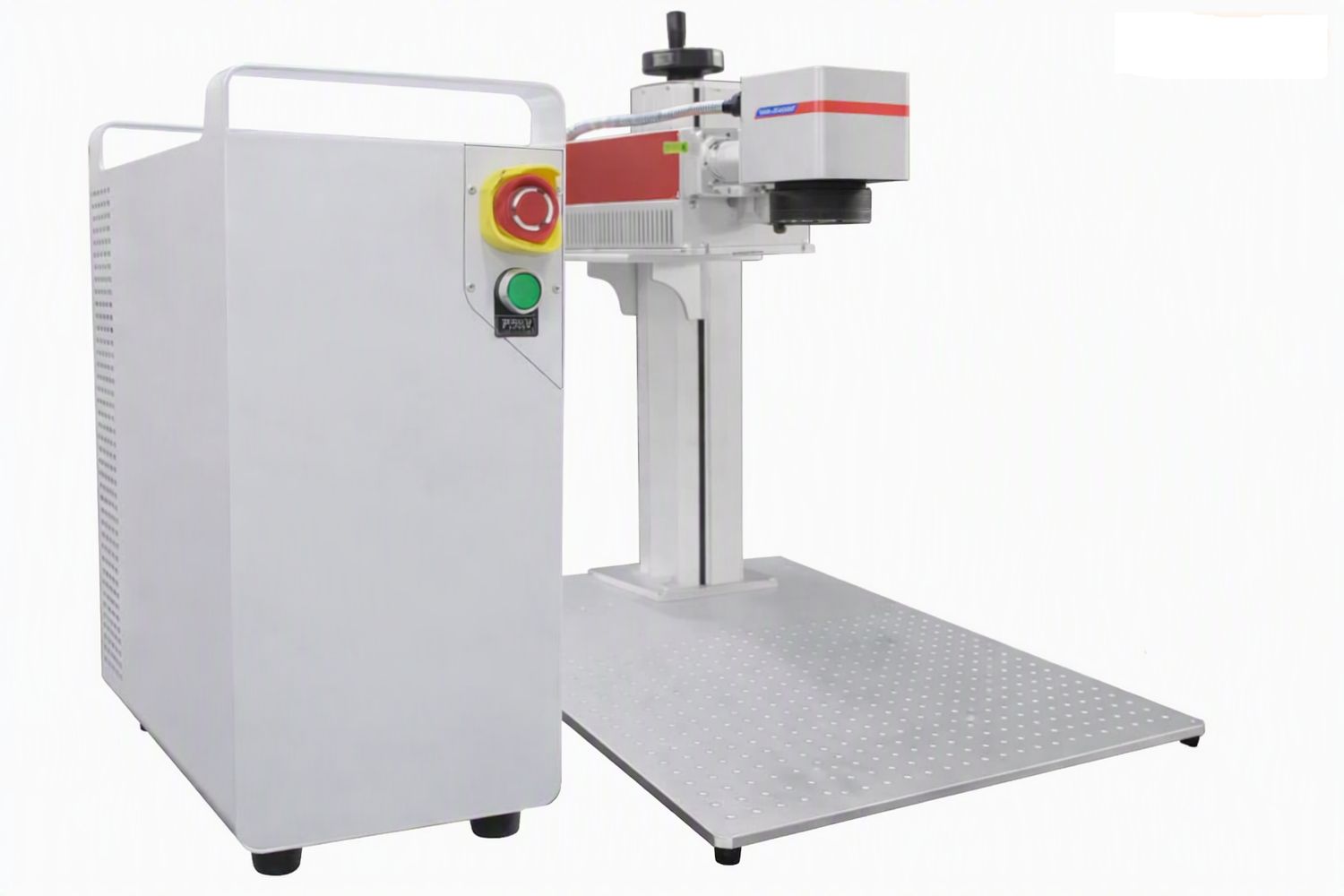

15W JPT UV 3D Mini Split Laser Machine Marking
C$33 000.00
In stock
Product Details
The 3D UV 15W laser machine marking is a split design that is more convenient for you to use. The wavelength of ultraviolet laser is 355nm, which causes less damage to the added product.
UV laser machine marking can be applied to materials such as glass, ceramics, plastics, etc. At the same time using a 3D software system can meet the requirements of embossing, depth marking, and carving.
1.Our UV 3D laser marking machine utilizes a TEYU water-cooled chiller featuring efficient refrigeration technology. This enables rapid cooling and maintenance of a constant temperature, ensuring the stable operation of the equipment.
2.The FEELTEK galvanometer system can achieve high-precision beam positioning and scanning, ensuring precise and meticulous marking on three-dimensional surfaces.
3.The split design separates key components such as the water cooling system, control system, and marking head, which can better adapt to different working environments and space limitations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HTU‑15 |
| Power | 15 W |
| Laser source | JPT |
| UV laser wavelength | 355 nm |
| Average power | ＞15 W @ 60 kHz |
| Frequency range | 40 kHz – 300 kHz |
| Beam quality (M²) | ≤ 1.2 |
| Spot roundness | ＞ 90 % |
| Spot diameter | 0.45 ± 0.15 mm |
| Working temperature | 0 °C – 40 °C |
| Cooling method | Water‑cooled |
| Supply voltage | DC 36 V |
| Average power consumption | ＜ 350 W |
| Galvo head | FEELTEK FR20‑F |
| Marking range | 300 × 600 × 200 mm |
