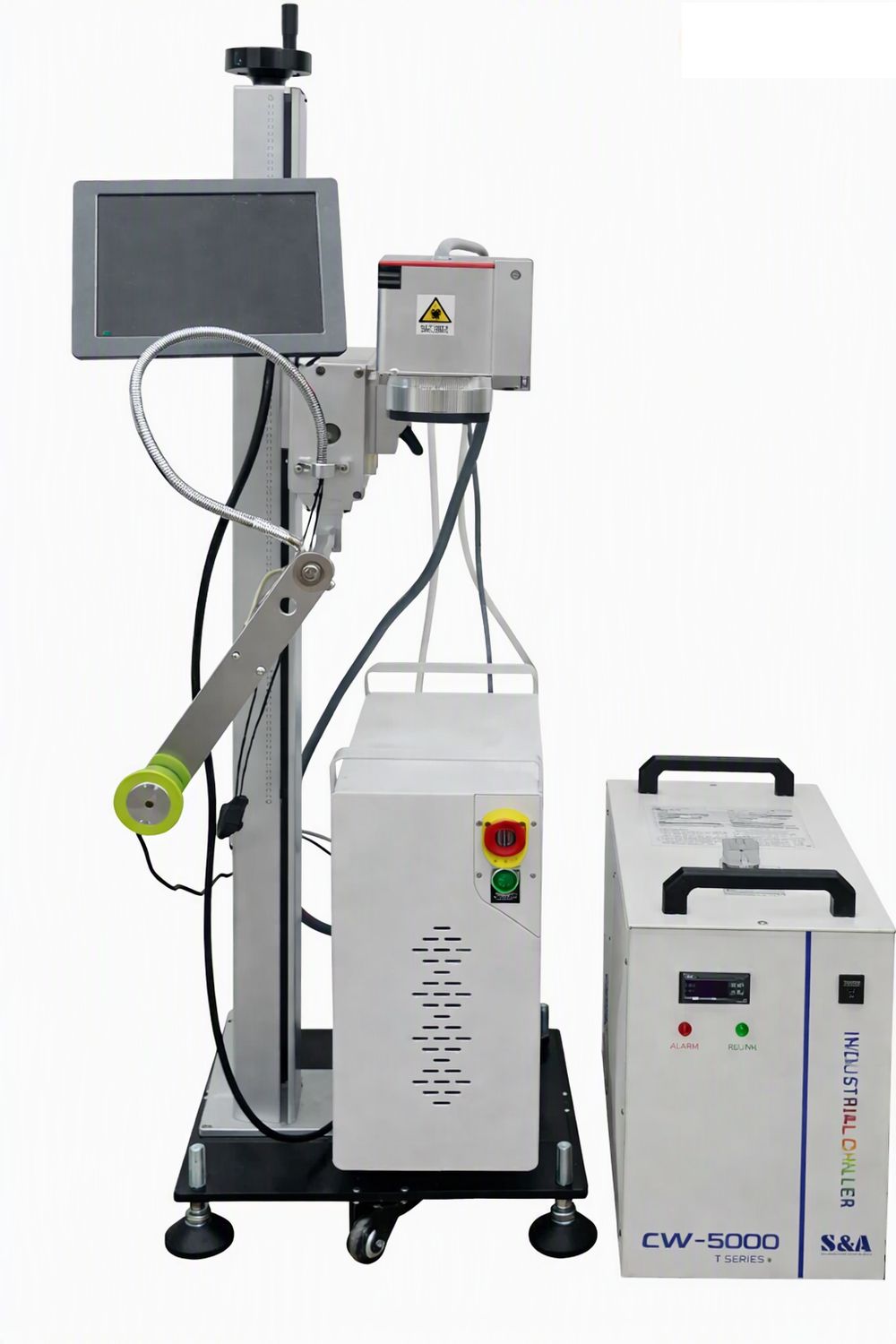

10W UV laser marker
C$35 000.00
In stock
Product Details
3W 5W 10W Flying UV Laser Marker For Metal Glass Plastic
This UV laser marker has 3W 5W 10W laser power optional. It can achieve high-precision, high-speed, high-quality marking effects.
Dragonfire’s flying UV laser marker can be applied to high-speed production lines for marking operations, improving production efficiency. Mainly used for marking logos, models, production dates, product codes, text introductions, barcodes, QR codes, etc., the marking effect is long-lasting.
Our flying UV laser marker is 1.2 meters high and can be freely adjusted in height. During the marking process, there will be no chemical pollution or harmful substances, which meets environmental protection requirements.
Flying laser marking machine adopts a split design to reduce interference between different components. The independent water cooling system can maintain the temperature of the laser and marking head within a reasonable range, improving equipment stability.
Machine Parameters
| Model | HTU-3 | HTU-5 | HTU-10 |
| Cooling method | Water-cooling | Water-cooling | Water-cooling |
| Machine weight | 90kg | 90kg | 90kg |
| Machine dimensions | 980*740*1400mm | 980*740*1400mm | 980*740*1400mm |
| Laser Parameters | |||
| Power | 3W | 5W | 10W |
| Laser source | JPT/Huaray | JPT/Huaray | JPT/Huaray |
| Central wavelength | 355nm | 355nm | 355nm |
| Marking area | 100*100mm | 100*100mm | 100*100mm |
| Rate range | 20kHz-200kHz | 20kHz-200kHz | 50kHz-200kHz |
| Beam quality | M²≤1.2 | M²≤1.2 | M²≤1.2 |
| Beam circularity | >90% | >90% | >90% |
| Galvanometer | Sino RC1001 | Sino RC1001 | Sino RC1001 |
| Average power | <180W | <200W | ＜350W |
| Operating temp | 0°C-40°C | 0°C-40°C | 0°C-40°C |
