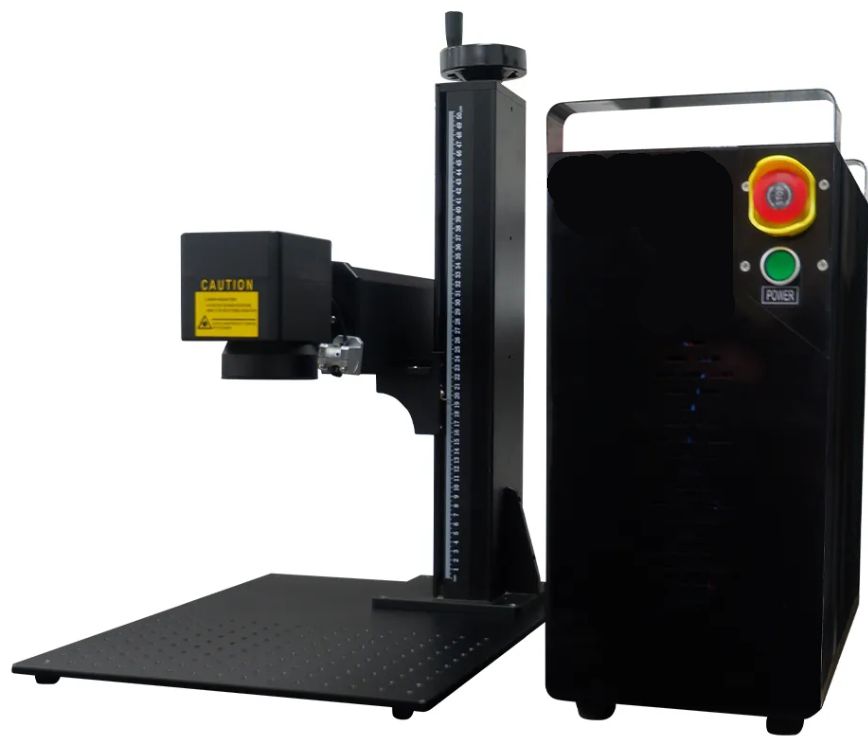

100W mini split laser marker
C$11 000.00
In stock
Product Details
20W to 100W Split-type Mini Laser Marking Machine for Metal
This is a split-type mini laser marking machine with power options of 20W, 30W, 50W, 60W, and 100W. It can mark all types of metals, ABS, and PVC plastics.
The workbench and laser of the mini laser marking machine are separated, providing a larger work platform; additionally, the laser can be pulled out for easy inspection and maintenance.
Dragonfire’s mini laser marking machine can mark precise and intricate patterns, text, and barcodes on metals, ABS, and PVC plastics. It ensures high-quality marks, suitable for applications requiring high accuracy.
Our mini laser marking machine is compact and takes up little space. It weighs only 46 kg, and its lightweight makes it easy to carry and move between different work locations. It is suitable for applications requiring portability and flexibility.
Technical Specifications
| Parameter | HTF20 | HTF30 | HTF50 | HTF60 | HTF100 |
|---|---|---|---|---|---|
| Model | HTF20 | HTF30 | HTF50 | HTF60 | HTF100 |
| Laser Power | 20 W | 30 W | 50 W | 60 W | 100 W |
| Operating Voltage | 110V/220V, 50/60 Hz | 110V/220V, 50/60 Hz | 110V/220V, 50/60 Hz | 110V/220V, 50/60 Hz | 110V/220V, 50/60 Hz |
| Laser Source | JPT / Raycus / MAX | JPT / Raycus / MAX | JPT / Raycus / MAX | JPT / Raycus / MAX | JPT / Raycus / MAX |
| Galvo Head | RC1001 | RC1001 | RC1001 | RC1001 | RC1001 |
| Marking Area | 110 × 110 mm | 110 × 110 mm | 110 × 110 mm | 110 × 110 mm | 110 × 110 mm |
| Power Adjustment Range (%) | 0–100 % | 0–100 % | 0–100 % | 0–100 % | 0–100 % |
| Marking Speed | 0–1000 mm/s | 0–1000 mm/s | 0–1000 mm/s | 0–1000 mm/s | 0–1000 mm/s |
| Fiber Cable Length | 3 m | 3 m | 3 m | 3 m | 3 m |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| System Software | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 |
| Cooling Method | Air‑cooled | Air‑cooled | Air‑cooled | Air‑cooled | Air‑cooled |
| Machine Dimensions | 700 × 500 × 550 mm | 700 × 500 × 550 mm | 700 × 500 × 550 mm | 700 × 500 × 550 mm | 700 × 500 × 550 mm |
| Machine Weight | ~46 kg | ~46 kg | ~46 kg | ~46 kg | ~46 kg |
