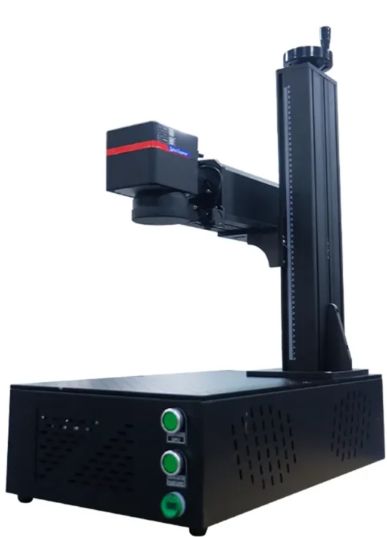

100W All-in-one Laser Marking Machine

100W All-in-one Laser Marking Machine

C$20 000.00
In stock
Product Details

All-in-one Laser Marking Machine for Sale (20W to 100W)

The all-in-one laser marking machine has a lightweight and compact structure, weighing only 35kg. Dragonfire’s all-in-one laser marking machine supports customers to customize special patterns and logos on it. The compact structure, lightweight, and portability of the portable laser marker can better meet the market’s needs and be suitable for various working environments. Welcome to buy.

Dragonfire’s portable laser marking machine is small and lightweight, weighing only 35 kg. Because of its compact and space-saving, the fibre laser marker is ideal for home or office use.
Regarding finding focus, our portable laser marking machine features an auto-focus system and no need for testing, which can save you time on setup. You can also adjust the XY axis manually to achieve precise marking and fine-tuning with ease. We could customize the cabinet name and logo that you like. HANTENCNC aims to provide simplicity and efficiency with flexible laser marking solutions for customers.
Our portable laser marking machine has various power options; you can choose 20W, 30W, 50W, 60W, 80W and 100W power:
• 20W and 30W low-power lasers are usually used for shallow marking on flat surfaces of metals, such as bare metals, coated metals, painted metals, plastics, and rubber.
• 50W, 60W, 80W, and 100W high-power lasers are ideal for relief engraving and deep engraving on soft metals such as aluminium, brass, copper, silver, and gold.
Dragonfire’s portable laser marking machine is suitable for integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, moulds, wires and cables, food packaging, jewelry, tobacco and military affairs, etc.

Technical Specifications

Parameter HTF20 HTF30 HTF50 HTF60 HTF100
Model HTF20 HTF30 HTF50 HTF60 HTF100
Power Supply Voltage 110V/220V, 50/60Hz 110V/220V, 50/60Hz 110V/220V, 50/60Hz 110V/220V, 50/60Hz 110V/220V, 50/60Hz
Total Power Consumption 460 W 490 W 550 W 580 W 700 W
Output Power 20 W 30 W 50 W 60 W 100 W
Galvo Head SINO RC1001 SINO RC1001 SINO RC1001 SINO RC1001 SINO RC1001
Marking Area 110 mm × 110 mm 110 mm × 110 mm 110 mm × 110 mm 110 mm × 110 mm 110 mm × 110 mm
Marking Line Width 0.025 mm 0.025 mm 0.025 mm 0.025 mm 0.025 mm
Minimum Character Size 0.15 mm 0.15 mm 0.15 mm 0.15 mm 0.15 mm
Power Adjustment Range (%) 0–100 % 0–100 % 0–100 % 0–100 % 0–100 %
Marking Speed 0–1500 mm/s 0–1500 mm/s 0–1500 mm/s 0–1500 mm/s 0–1500 mm/s
Fiber Cable Length 3 m 3 m 3 m 3 m 3 m
Laser Wavelength 1064 nm 1064 nm 1064 nm 1064 nm 1064 nm
Control Software EZCAD2 EZCAD2 EZCAD2 EZCAD2 EZCAD2
Cooling Method Air Cooling Air Cooling Air Cooling Air Cooling Air Cooling
Machine Dimensions 350 × 600 × 380 mm 350 × 600 × 380 mm 350 × 600 × 380 mm 350 × 600 × 380 mm 350 × 600 × 380 mm
Laser Source MAX / Raycus / JPT MAX / Raycus / JPT MAX / Raycus / JPT MAX / Raycus / JPT MAX / Raycus / JPT
Machine Weight Approx. 35 kg Approx. 35 kg Approx. 35 kg Approx. 35 kg Approx. 35 kg
